Audi e-tron goes Sportback…

Indeed, an extra zest of sportiness is added to the already iconic Audi e-tron. The Sportback version looks and is more dynamic, as it offers up to 300 kW of power and a range of up to 446 kilometers (277.1 miles). A new feature, and for the first offered on a in a mass-production vehicle, are its digital matrix LED headlights.

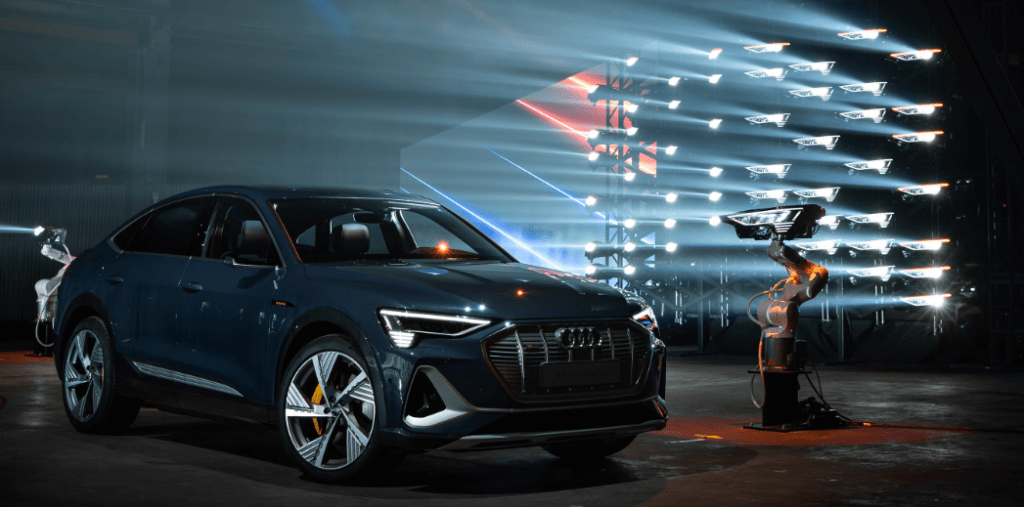

This was also clearly visible at the Los Angeles presentation of this elegant SUV Coupé, where the rakish and elegant contours of the Sportback were lit by an array of LED headlights in the background, and mounted on a robot alongside the car.

Just read on for more details…

Hans Knol ten Bensel

The Audi e-tron Sportback looks very good in the typical Audi design language.  The roof drops down steeply to the rear—in typical coupé style— and is flowing into the steeply raked D-pillars. The lower edge of the third side window rises towards the rear—also a typical Sportback feature.

The designers also varied the signature at the broad diffuser, drawing attention to the absence of exhaust tailpipes. A light strip connects the LED lights to one another.

Announcing even more colour…

A total of thirteen paint finishes are available for the all-electric drive SUV coupé, including the new colour plasma blue, metallic, which is exclusive to the e-tron Sportback. The logo on the electric charging flap features the eye-catching high-voltage signal colour orange, which can also be applied to the brake callipers on request.

The S line model emphasizes the sporting DNA of the Audi e-tron Sportback, and is standard equipped with 20-inch wheels and sport air suspension. At the rear end, the spoiler as well as a striking diffuser which extends across the entire vehicle width, contributes to the outstanding vehicle aerodynamics. In contrast to the basic model, the attachments on the S line exterior are painted in the exterior body colour – including the wheel arch trims, door sills, bumpers and exterior mirrors.

For those who want more contrast, Audi also offers the so-called black styling package that accentuates the area of the Singleframe, the side windows, and the bumper. The exterior mirror housings are also available in black as an option.

A drag coefficient of merely 0.25…

In conjunction with the S line exterior and virtual exterior mirrors, the Sportback achieves an drag coefficient value of just 0.25. This is primarily due to the coupé body shape and the associated lower aerodynamic drag behind the car. The high separating edge of the Sportback minimizes swirl in the air flow in this area.

Global innovation in a production vehicle: The digital matrix LED headlights

With the digital matrix LED headlights as top-of-the range equipment, Audi presents a worldwide first in a production vehicle: Broken down into minute pixels, their light can illuminate the road in high resolution. The design is based on a technology abbreviated as DMD (digital micromirror device) and is also used in many video projectors.

Audi e-tron Sportback: digital matrix LED headlight

At its heart is a small chip containing one million micromirrors, each of whose edge length measures just a few hundredths of a millimeter. With the help of electrostatic fields, each individual micromirror can be tilted up to 5,000 times per second. Depending on the setting, the LED light is either directed via the lenses onto the road or is absorbed in order to mask out areas of the light beam.

Revolution ahead: just follow the light…

These LED lights will be seen on the e-tron Sportback mid 2020, and they can perform multiple tasks. It can generate dynamic leaving- and coming-home animations that appear as projections on a wall or on the ground. This presentation transforms the area in front of the car into a carefully illuminated stage. Not only does the digital light system deliver cornering, city, and highway lighting as versions of the low-beam light with exceptional precision, it also supplements the high-beam light by masking out other road users with even greater accuracy.

Above all, however, it offers innovative functions such as lane light and orientation light. On freeways, the lane light creates a carpet of light that illuminates the driver’s own lane brightly and adjusts dynamically when he or she changes lane.

In this way, it improves the driver’s awareness of the relevant lane and contributes to improved road safety. In addition, the orientation light uses darkened areas masked out from the light beam to predictively show the vehicle’s position in the lane, thereby supporting—especially on narrow roads or in highway construction zones—the safe lane centering assist.

The marking light function is also used in conjunction with the optional night vision assist. The light automatically draws attention to any pedestrians it detects, thereby reducing the danger of overlooking pedestrians in the immediate vicinity of the lane.

Detail

On the second part of this report, we will tell you more about the dynamic qualities, the drivetrain, i.e. batteries and engines, interior and connectivity of this e-tron Sportback…

Stay tuned!

Hans Knol ten Bensel
